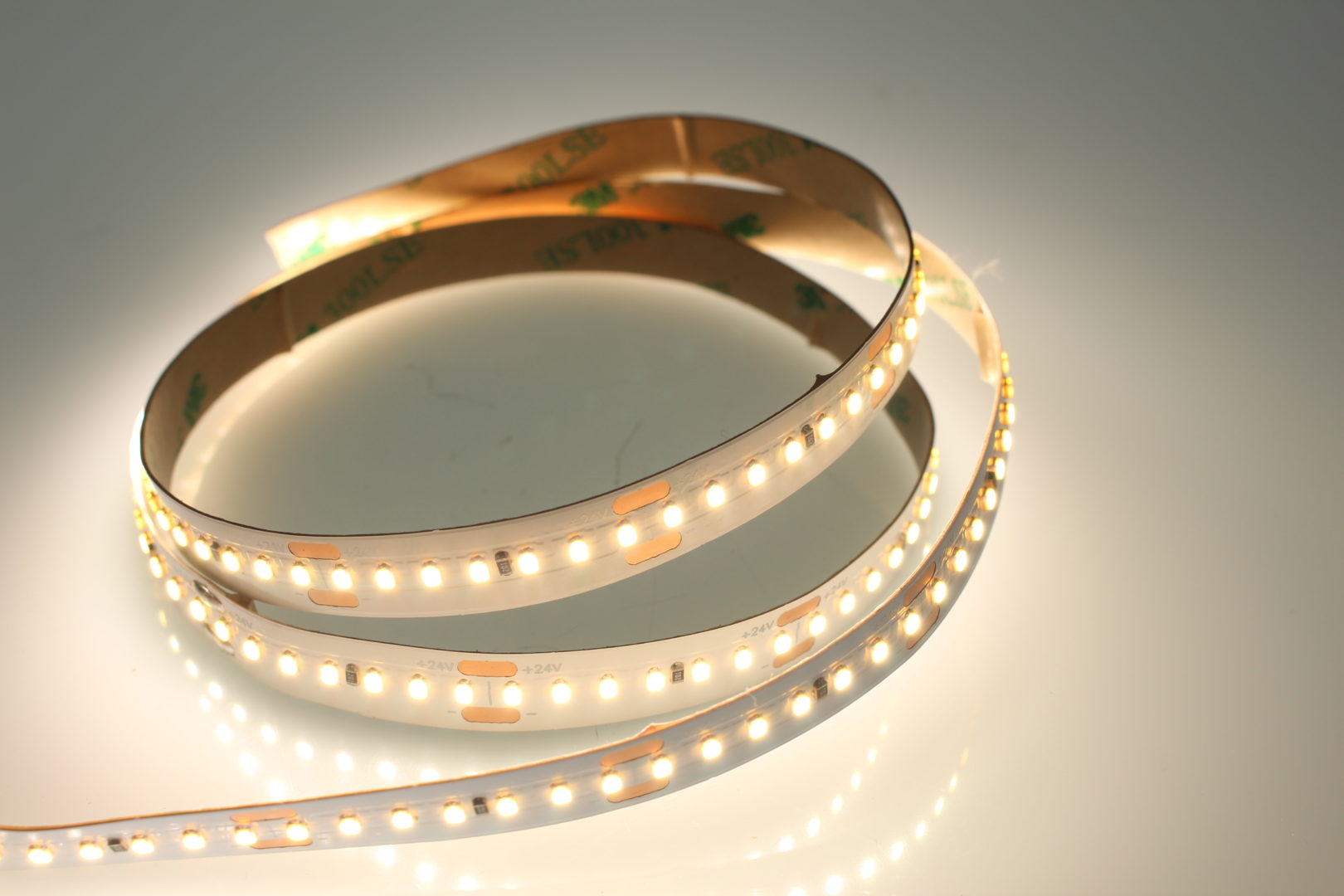

Adflex flexible LED tape - 2216
Advance's Adflex 2216 flexible LED tape is a unique flex tape which offers high CRI>90 and efficiencies of up to 105 lumens per Watt.
Similar in power and lumen output to our Adflex 3528 series, 2216 has a much slimmer body with dimensions of 2.1m (length) x 1.6m (width), Adflex 2216 provides high colour rendering. Advance can supply Adflex 2216, at up to 280 chips per metre. Running at 12V or 24V, 2216 delivers a linear line of light with minimal spotting and high output.
Available to use across a wide variety of applications, Adflex 2216 chip flexible LED strip system is perfect for architectural details as well as Point of Sale, transport, hospitality and commercial buildings.
- Header / graphic illumination
- Wall washers
- Canopy lighting
- Operating voltage (V): 12V or 24V DC
- Beam angle: 120 degree
- Driver type: Constant voltage
- Operating temperature (range): -20 to 60C
- Variable cut points
- Adflex 2216 tape width: 8mm – 10mm
Available in two voltages:
12V: 60 LEDs per metre, 120 LEDs per metre, 180 LEDs per metre, 240 LEDs per metre
24V: 70 LEDs per metre, 140 LEDs per metre, 210 LEDs per metre, 280 LEDs per metre
We can also provide full accessories:
- Distribution blocks, Leads & Connectors
